G550 Galvanized Steel Plate

WhatsApp/WeChat/Mobile:+86 18963099130

Certification : CE, ISO, SGS,BV,Mill Certificate
Standard : ASTM,JIS,GB,DIN,EN

Design Style : Customizable

Delivery Time : 7-10Days

G550 Galvanized Steel Plate
Galvanized steel is mild steel with a coating of zinc. The zinc protects the steel by providing cathodic protection to the exposed steel, so should the surface be damaged the zinc will corrode in preference to the steel. Zinc steel is one of the most widely used products, used extensively in the building sector, automotive, agricultural and other areas where the steel needs to be protected from corrosion

PRODUCT DETAIL

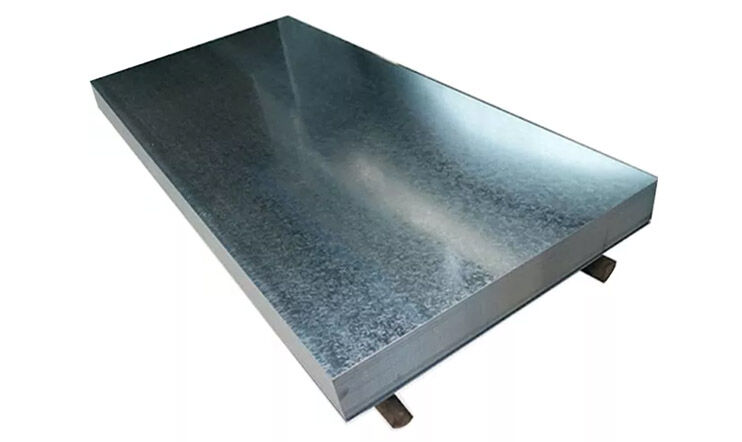

Galvanized sheet.jpg

PRODUCT INTRODUCTION

This coating protects the steel from particle corrosion and general surface scratches and abrasions. It is ideal for marine applications as the surfacing is salt resistant and also combats other weather conditions. Galvanised Steel is appropriate for construction environments of up to 200 degrees celsius.

Product NameGalvanized steel coil sheet
Width1000mm/1219mm/1240mm/1500mm/2000mm oras customer's requirements
Thickness Cold rolled:0.1~4.0mm Hot rolled:4mm~300mm
Length 100mm to 12000mm or as customer's request
Zinc coating60g/m2-600g/m2
StandardsAISI ASTM JIS SUS DIN GBJISG33021998ASTMA653M/A924M 2004
MaterialSGHC,SGCC,DX51D,Q195,all according to the customers request
Production processCold rolled steel coil-uncoil-Pickling-Annealed-hot dipped galvanizing-cooling -surface treatment -rolling
Coating Weight30-275a/m2,double side
SpangleBig spanglenormalspangle,small spangle,non-spangle
Edgemill edge,cut edge
Surface treatment Passivation or ChromatedSkin PassOil or Unoiledor Antifinger print
Coil weight3-8MT/Coil or as your request

What is galvanised steel used for?

Galvanized steel is all around us, in a whole variety of industries including road, rail, energy plants, oil and gas, agriculture, water and waste and sports and leisure. It can play an important role for buildings, bridges, facades, signal gantries, gates, balconies and even sculptures. Wherever there is a risk for corrosion of steel, galvanising should be used.

Galvanizing is Durable

A galvanized coating is one of the most durable forms of corrosion protection on the market.
An average coating thickness of 85 microns, the same thickness as a sheet of A4 paper, can protect a steel structure for the better part of 100 years.
One of the inherent benefits of hot dip galvanizing is that when clean steel that is greater than 6mm thick is submerged into molten zinc, it will develop a minimum mean coating of 85 microns. This coating thickness will meet the corrosion performance required in many applications across the UK and Ireland today.
In inland areas across the UK and Ireland, a galvanized coating can weather at less than one micron per year, giving it incredible longevity. Even in coastal environments an 85 micron coating can still deliver a life expectancy of 30 years or more.


Read the case history on Lydlinch Bridge, Dorset where galvanising has lasted over 77 years

Galvanizing is Sustainable

The long-term durability provided by galvanizing is achieved at relatively low environmental burden in terms of energy and other globally relevant impacts.
Several studies have demonstrated the high economic and environmental costs associated with the repeated maintenance painting of steel structures. These burdens can be significantly reduced by an initial investment in long-term protection. Lack of attention to optimal corrosion protection can leave a damaging economic legacy of repeated maintenance costs.
In social housing projects, future maintenance costs will be borne by the local authorities. In public infrastructure projects, use of galvanized steel leads to lower maintenance budgets, releasing public funds for other purposes.



Galvanizing is Cost-effective

The true cost of protecting steel work from corrosion has to take into consideration two important elements, the initial cost of protection and the lifetime cost.
Hot dip galvanizing is often perceived to be more expensive than it is. There are two reasons for this: Firstly, that such a high performance coating is automatically assumed to be expensive. Secondly, the initial cost of galvanising relative to paint has changed significantly over recent years. Painting costs have steadily increased whilst galvanising costs have remained stable.
