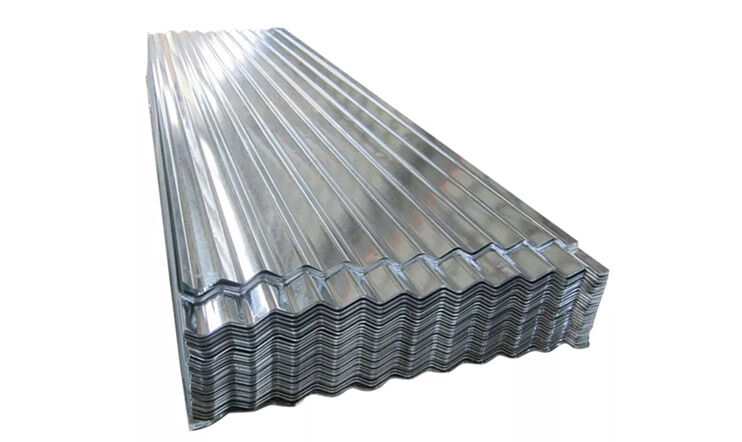

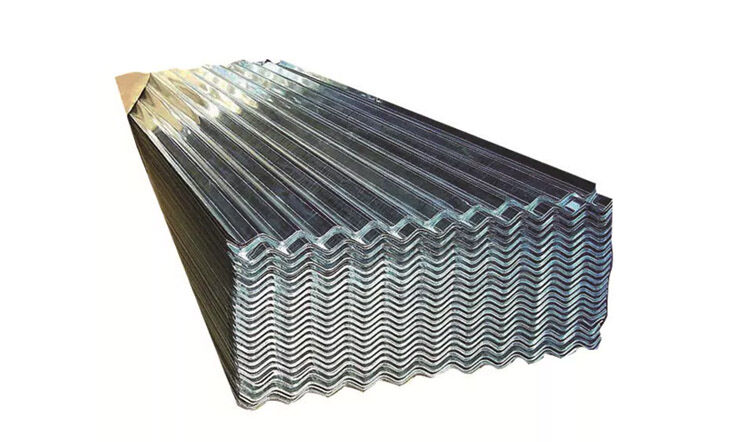

Galvanised Steel Corrugated Roof Sheeting is a zinc-coated sheet with a versatile range of applications in building and construction. The S-rib profile is structurally very strong.

Short Description:

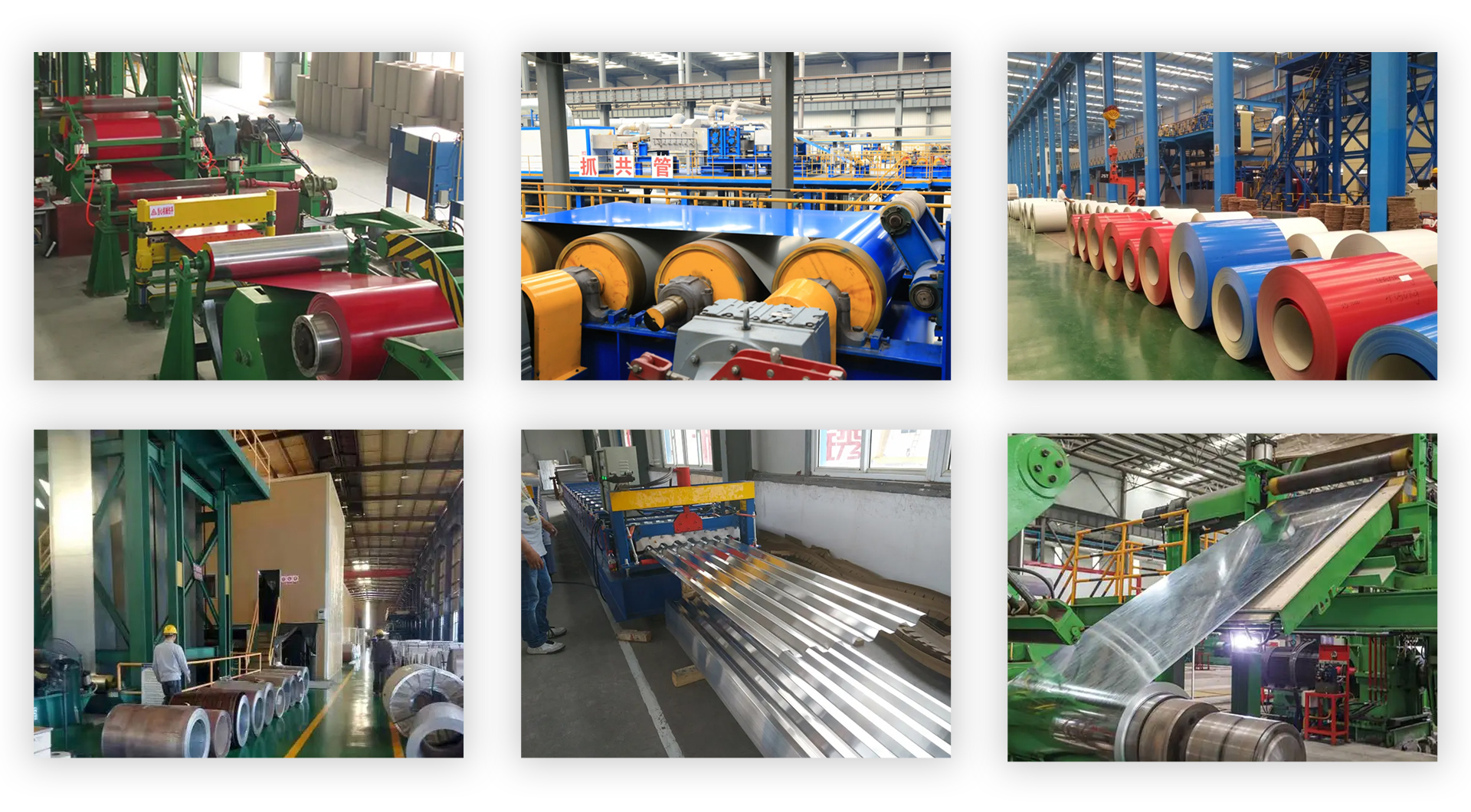

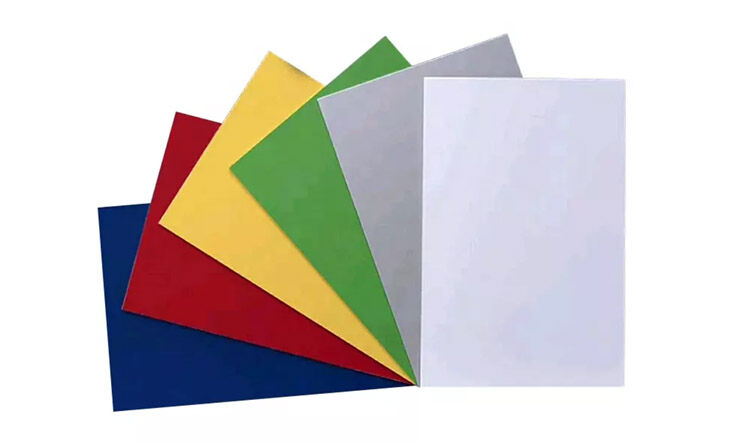

Corrugated steel roofing sheet is made of color coated sheet and galvanized steel sheet and processed by Roll Forming Machine.
Thickness: 0.12mm-0.6m
Width: 600mm-1050mm
Length: 1.8m to 12m
According to the different shapes, it is mainly divided into T-shaped tiles, corrugated tiles, glazed tiles and so on.

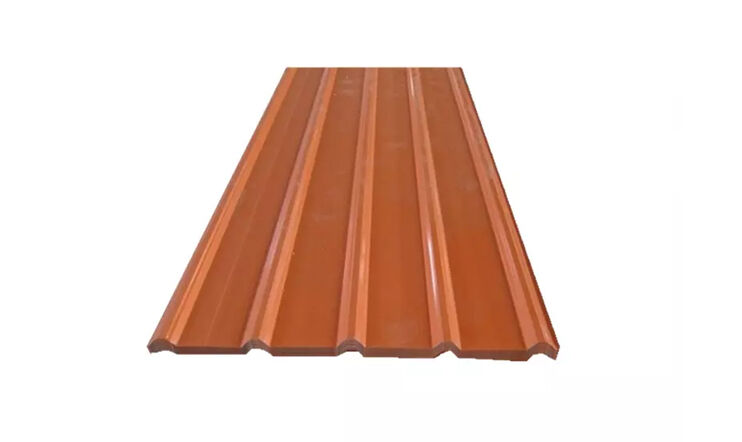

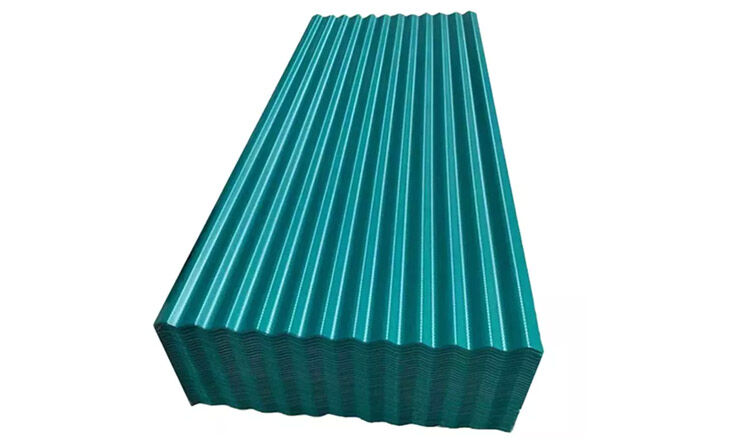

According to different metal materials, it can be divided into color coated roofing sheets, hot dipped galvanized corrugated roofing sheets and galvalume sheet roofing.

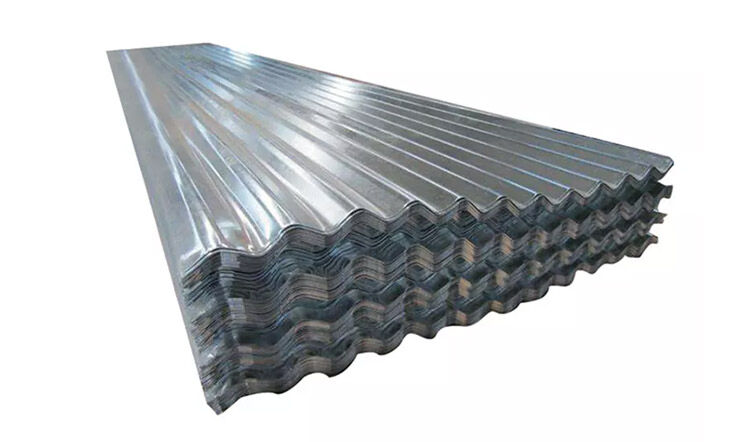

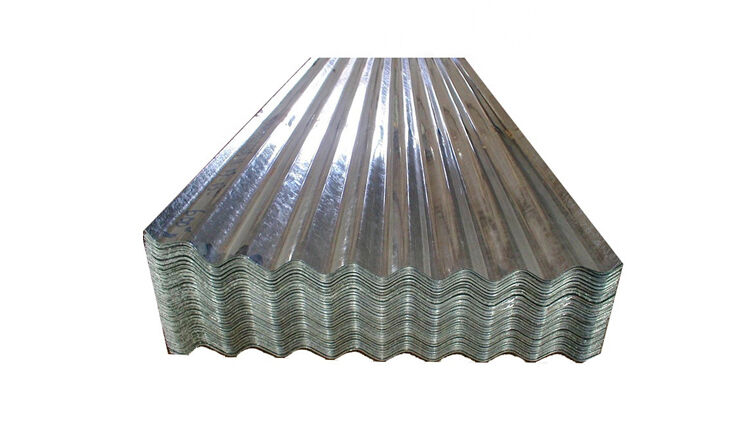

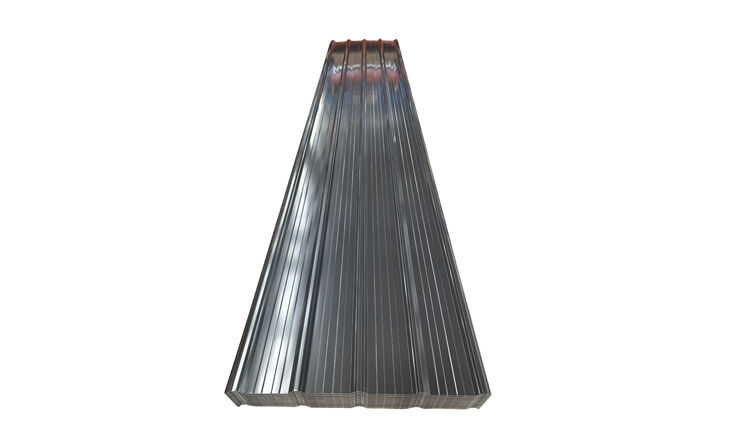

Corrugated Roof Sheeting – Galvanised – 0.47 mm – Z275

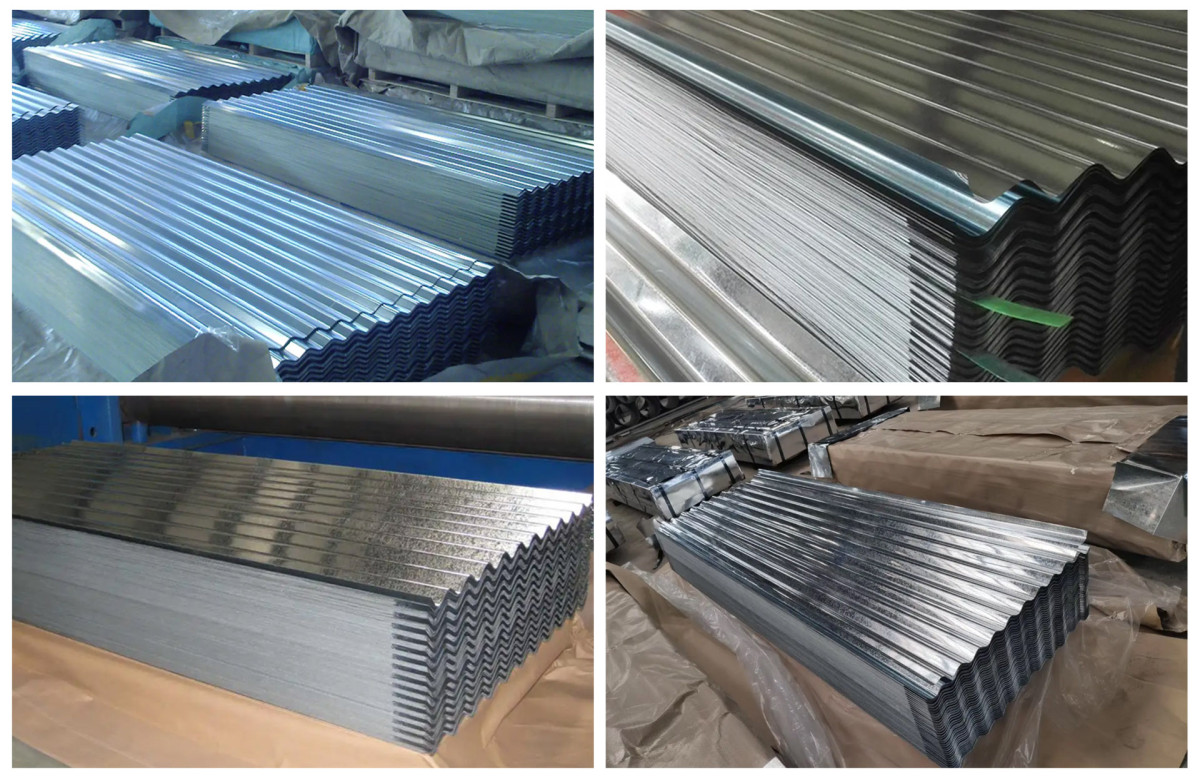

Galvanised Steel Corrugated Roof Sheeting is a zinc-coated sheet with a versatile range of applications in building and construction. The S-rib profile is structurally very strong. This profile can be cranked, curved and bull-nosed as per client requirements. The load span characteristics are dependent on application and product used. The steel provides strength/form-ability which is classed according to moderate bending, severe bending and load bearing application. (ISQ Rating) The zinc coating provides corrosion protection, which is classed according to the total zinc coating mass to both the top and bottom surface. (Z Rating).
Gauge : 0.47 mm
Zinc Rating : Z275
Coverage : 762 mm
Weight : 4.35 kg per meter
Colour : Silver, Galvanised
Material : Mild Steel

Mostly used in agricultural buildings, corrugated roofing sheets feature repetitive folds on their surface. Because of their unique shape, they offer years of reliable utility and enhanced strength. Their corrugated design with ridges and grooves make them stronger than before. The wavy construction paves the way for increased strength across smaller surface areas.

Fragile, lightweight metals like aluminum can also withstand decades of wind and rain because of their special corrugated shape. Corrugated panels must be maintained every 5-10 years depending on the contamination level of the installation site. These roof panels are completely durable and environmentally friendly, perfect for protecting garages, porches and sheds.
Galvanized steel sheet is the base material for different types of corrugated panels, such as those coated with polyester paint or protected with PVC sol coated roof panels.
Specifications:

Uses of Thick Galvanised Corrugated Roofing Sheets

This thick galvanised single skin corrugated sheet has many uses in commercial, domestic, industrial and agricultural buildings and can be used simply as a single skin of corrugated cladding. You could also use them to over clad an existing roof or as part of an insulated build-up system. Constructions with this type of corrugated sheet should be undertaken down to a 10-degree pitch safely, using a self-drilling screw fixings on the top-side of the profile.

The Benefits of using Galvanised Corrugated Roofing Sheets
Galvanised Corrugated Sheeting is a traditional profile often used on roofing and side cladding. These profiles are lightweight and easy to install, without the use of complicated tools. Your installation processes will be fast and simple, and each sheet is available in a range of thicknesses and can be cut to your specific requirements. Each galvanised roof sheet is also independently tested to ensure it is in line with current CE EN 14782 requirements.
